Decoiler Machine

  • The high rigidity of the machine structure and the main shaft enable the decoiler machine withstand heavy loads.
  • The four-piece roll support structure has a maintenance-free self-lubricating bearing in the swivel position, which is resistant to heavy loads and long life.
  • A variety of models from 1 ton to 15 tons can be manufactured with the decoiler machine.
  • The models below 5 tons are expanded by the link method, and the models exceeding 5 tons are expanded by the wedge structure.
  • Orders for double-ended reel decoiler accepted.
  • Other special design orders for the decoiler machine are accepted.
  • TR series can support the largest load. Select load size from 1000 to 1500 kilograms according to the specifications.
  • Coils can be placed in an overlapping position to save refueling time and at the same time space-saving.
  • Feeding speed can be adjusted arbitrarily by using the inverter feed.
  • The structure is super strong. The three-point support is the most durable and easy to maintain.
  • It is equipped with an emergency stop red button connected to the stamping machine for high safety.

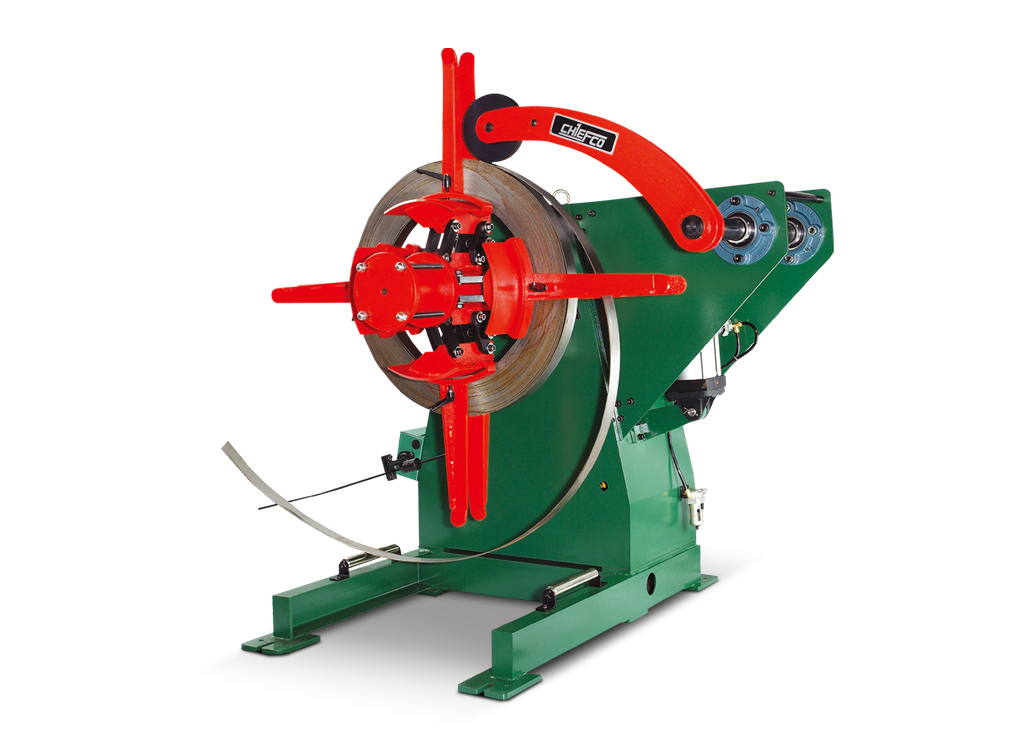

Decoiler Machine

UC Series

Decoiler machine model of UC series is the high rigidity of the machine structure and the main shaft can withstand heavy loads

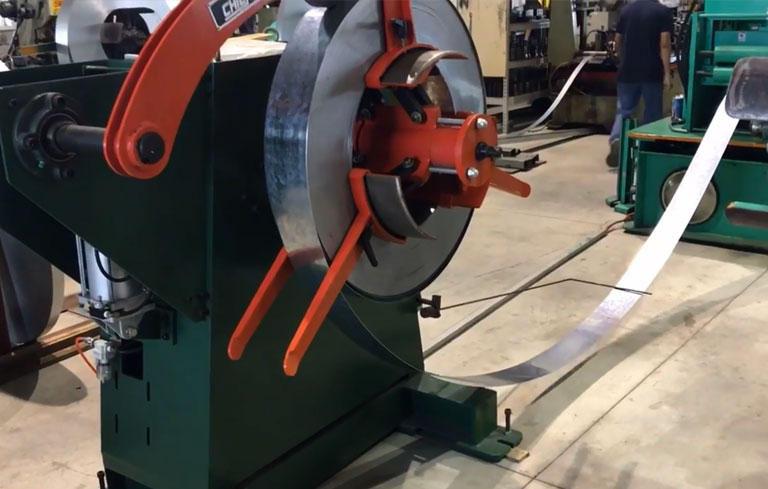

Video

DETAILS

Model 202 302 403 503 605 805 1005 12505
Max. Coil Width(mm) 200 300 400 500 600 800 1000 1250
Coil Weight(kg) 2000 2000 3000 3000 5000 5000 5000 5000

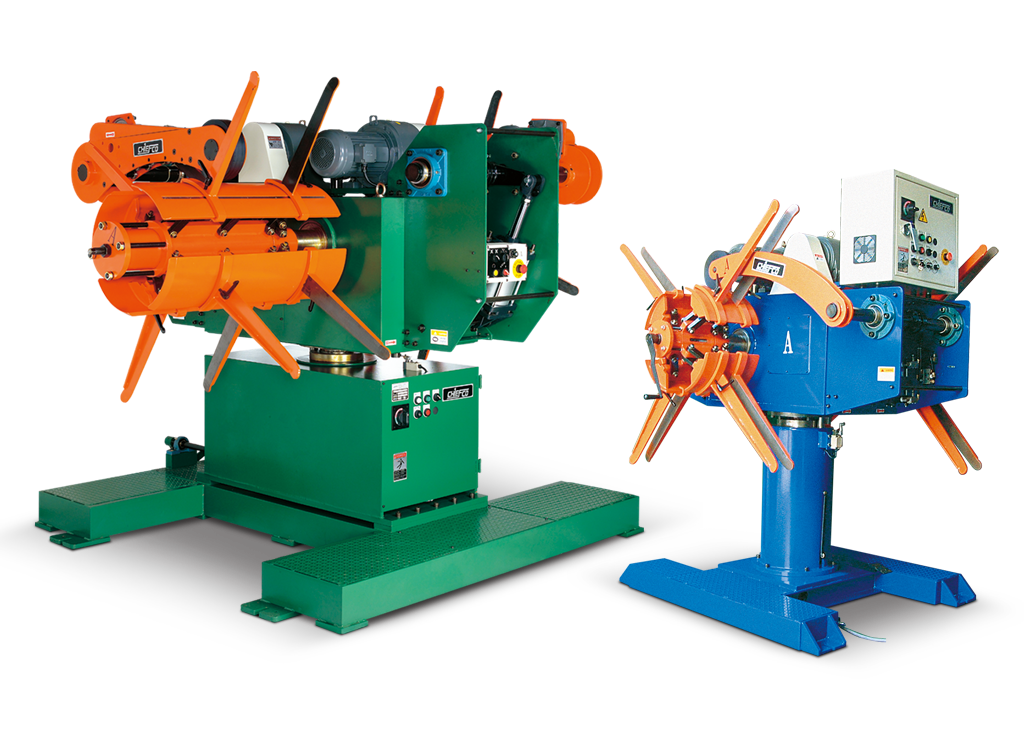

Double Head Series

DUC Series

Decoiler Machine | Double Head Series

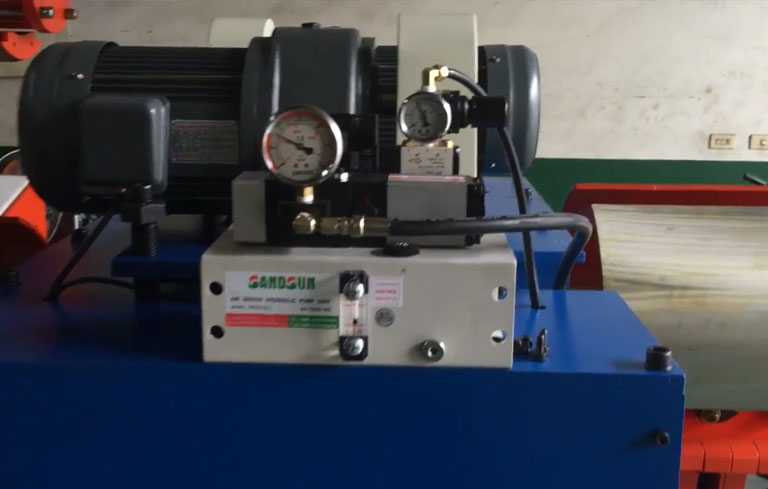

Video

DETAILS

Model 202 302 403 503 605 805 1005 12505
Max. Coil Width(mm) 200 300 400 500 600 800 1000 1250
Coil Weight(kg) 2000 2000 3000 3000 5000 5000 5000 5000

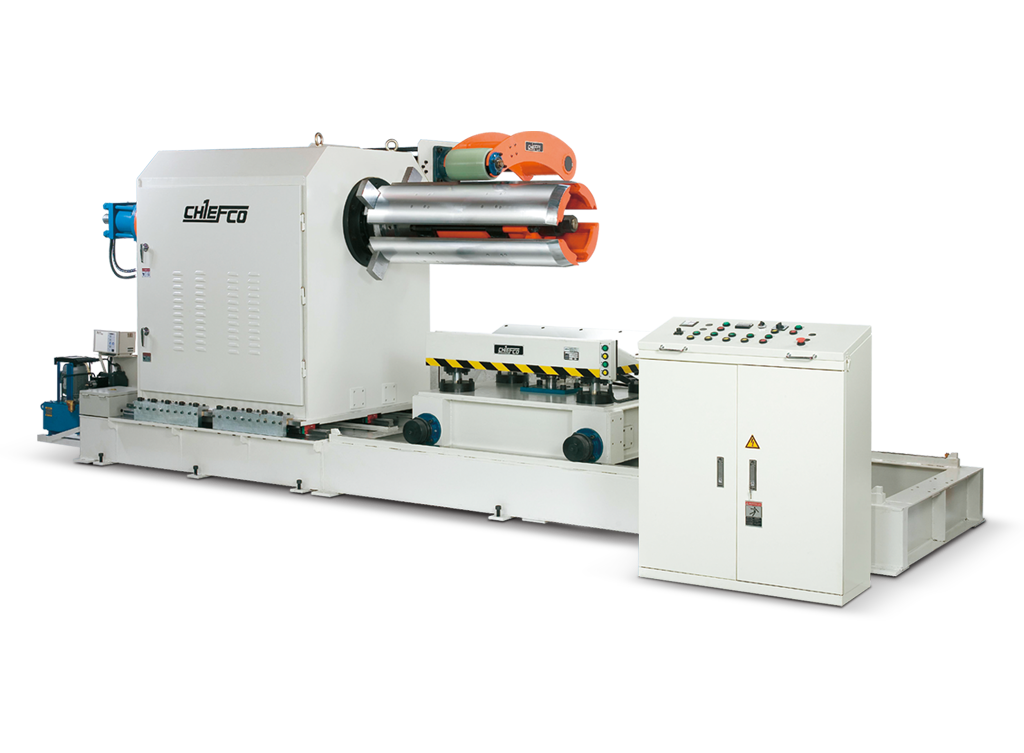

Heavy Duty Type Decoiler

UC-H Series

Decoiler Machine(Heavy Duty Type) | UC-H series

DETAILS

Model 12510 13012 16015
Max. Coil Width(mm) 1250 1300 1600
Coil Weight(kg) 10,000 12,000 15,000



  • Used the entire width of the material coil.

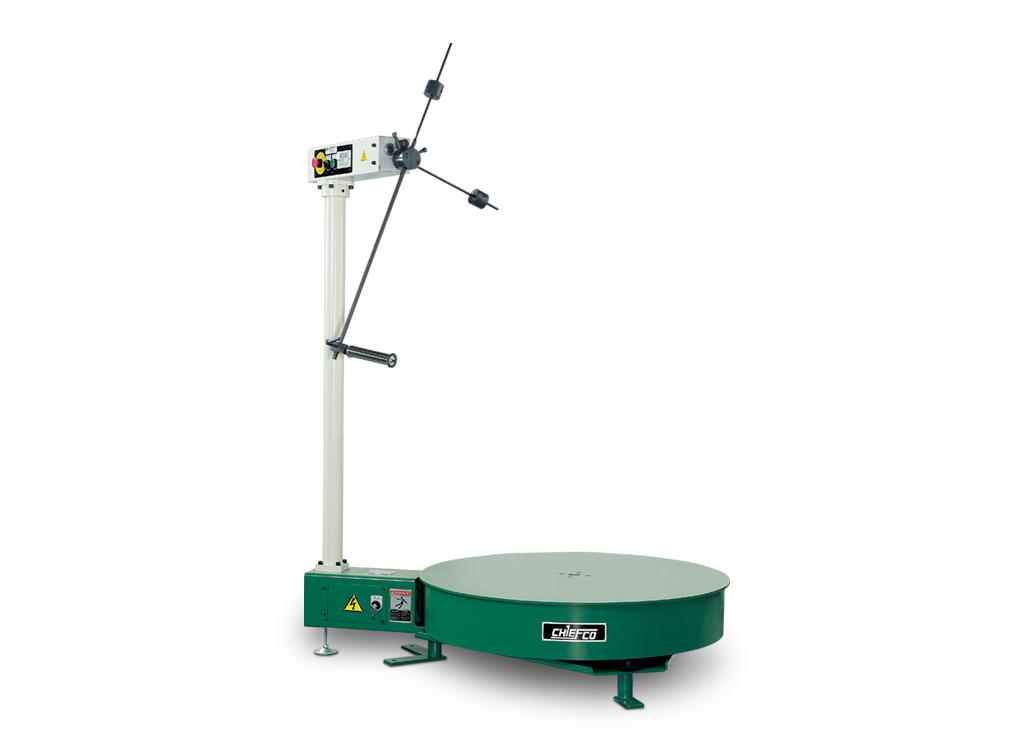

Turn Table

TR Series

Decoiler Machine(Turn Table) | TR series

DETAILS

Model 8080 10100 12150
Max. O.D,(mm) 800 1000 1200
Max. Weight(kg) 800 1000 1500
Max. Width(mm) 120 120 150

As the client's prosperity is top priority for CHIEF AUTOMATIC TECH, we adhere to the ideals of "High Quality & Excellent Service", and guarantee these as we innovate new products with attached value and high profitability.
